* In strict accordance with the standard of GB, JB, JIS, ANSI, KS, BS, DIN, API and etc.
* Certification: ISO9001, BSCI, CE, ROHS, FCC, FDA etc

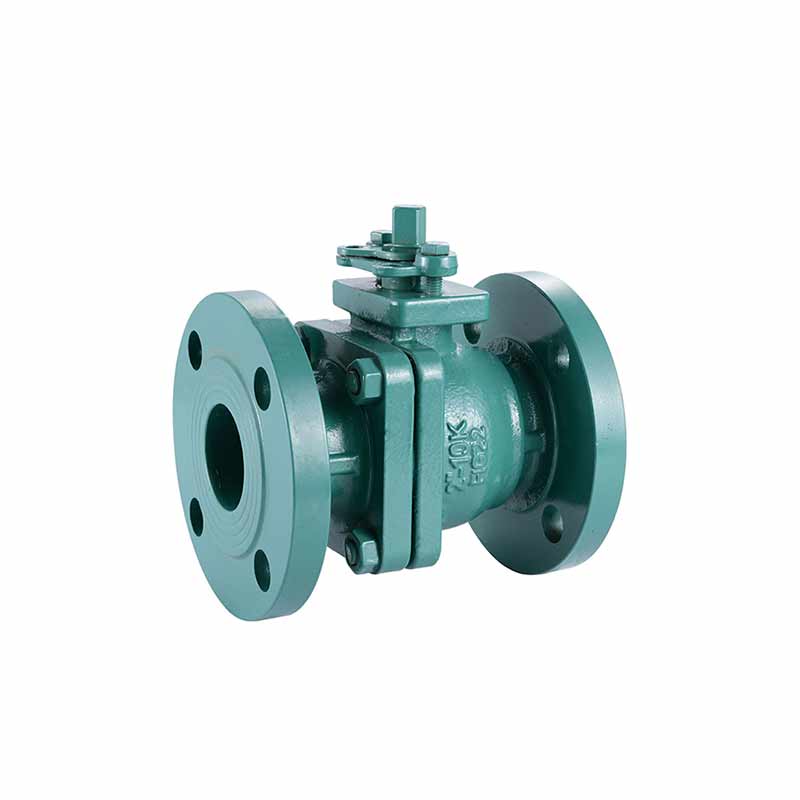

| Product Series： | BALL VALVE | MODEL： | RPQ41F-10K |
| DESIGN AND MANUFACTURE： | JIS B2031 | FACE TO FACE： | JIS B2002 |
| MOUNTING PAD： | ISO5211 | 1/2"-4"(6) | |
| SIZE： | 1/2"--10" | 5"-10"(39) | |
| BODY MATERIAL： | CAST IRON FC200 | BONNET MATERIAL： | CAST IRON FC200 |
| TRIM MATERIAL： | STAINLESS STEEL 304、316、316L ETC | SEAT MATERIAL： | PTFE |
| WORK PRESSURE： | 10K | WROK TEMPERATURE： | -20～150℃ |
| CONNECTION： | FLANGED |
