* In strict accordance with the standard of GB, JB, JIS, ANSI, KS, BS, DIN, API and etc.
* Certification: ISO9001, BSCI, CE, ROHS, FCC, FDA etc

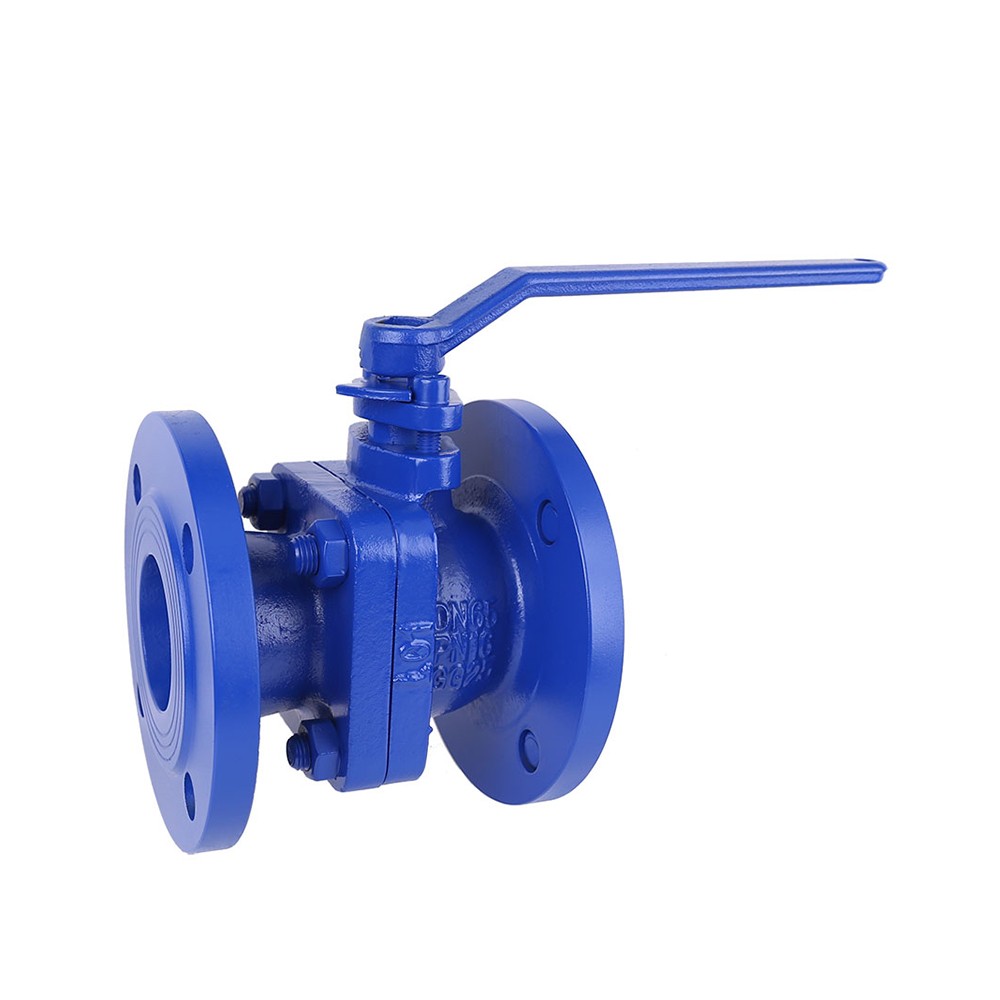

| Product Series： | BALL VALVE | MODEL： | DSQ41F-16 |
| DESIGN AND MANUFACTURE： | EN12516/DIN3357 | FACE TO FACE： | DIN3202/EN558-1 |
| FLANGE DIMENSION： | EN1092-2/ISO7005-2 | DN50-DN200(F4/14) | |
| SIZE： | DN50--DN200 | BODY MATERIAL： | CAST IRON GG25 |
| BONNET MATERIAL： | CAST IRON GG25 | TRIM MATERIAL： | STAINLESS STEEL 304、316、316L ETC |
| SEAT MATERIAL： | PTFE | WORK PRESSURE： | 1.6MPA |
| WROK TEMPERATURE： | -20～150℃ | CONNECTION | FLANGED |
