* In strict accordance with the standard of GB, JB, JIS, ANSI, KS, BS, DIN, API and etc.
* Certification: ISO9001, BSCI, CE, ROHS, FCC, FDA etc
| Product Series： | STEAM TRAP | MODEL： | S14MH-16Q/C |

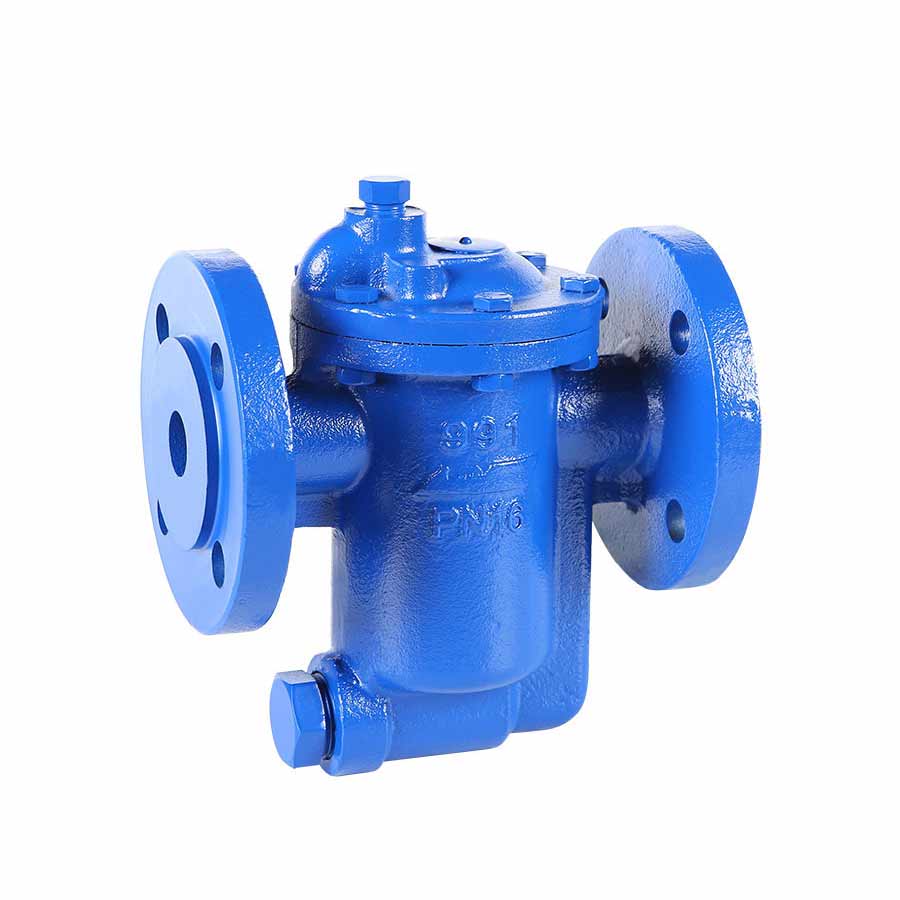

| Product Name： | DI&CS INVERTED BUCKET STEAM TRAP | SIZE： | DN15 ～DN20 |
| BODY MATERIAL： | DUCTILE IRON A395 / A216 WCB | BONNET MATERIAL： | DUCTILE IRON A395 / A216 WCB |
| BUCKET MATERIAL： | STAINLESS STEEL 304 TRAP& UP WITH CAST IRON WT | SEAT MATERIAL： | HARDENED SS 440 |
| STRAINER： | GRAPHITE+STAINLESS STEEL | WORK PRESSURE： | 1.6MPA |
| WROK TEMPERATURE： | DI:-20～230℃,CS:-20～320℃ | CONNECTION | FLANGED |
