* In strict accordance with the standard of GB, JB, JIS, ANSI, KS, BS, DIN, API and etc
* Certification: ISO9001, BSCI, CE, ROHS, FCC, FDA etc
You can click the QR code below or click the email button to send an email for a quote.

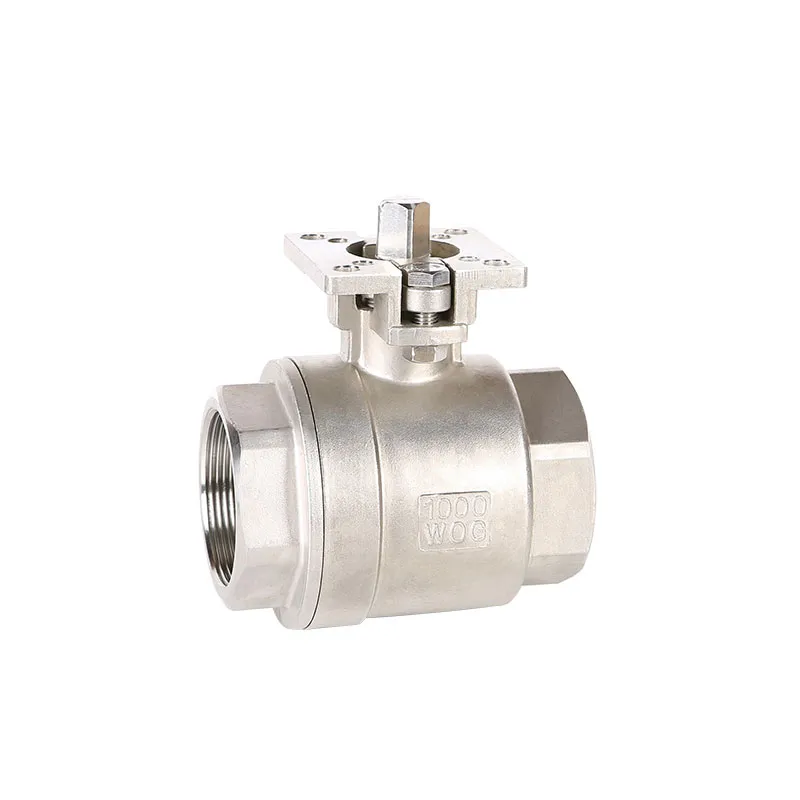

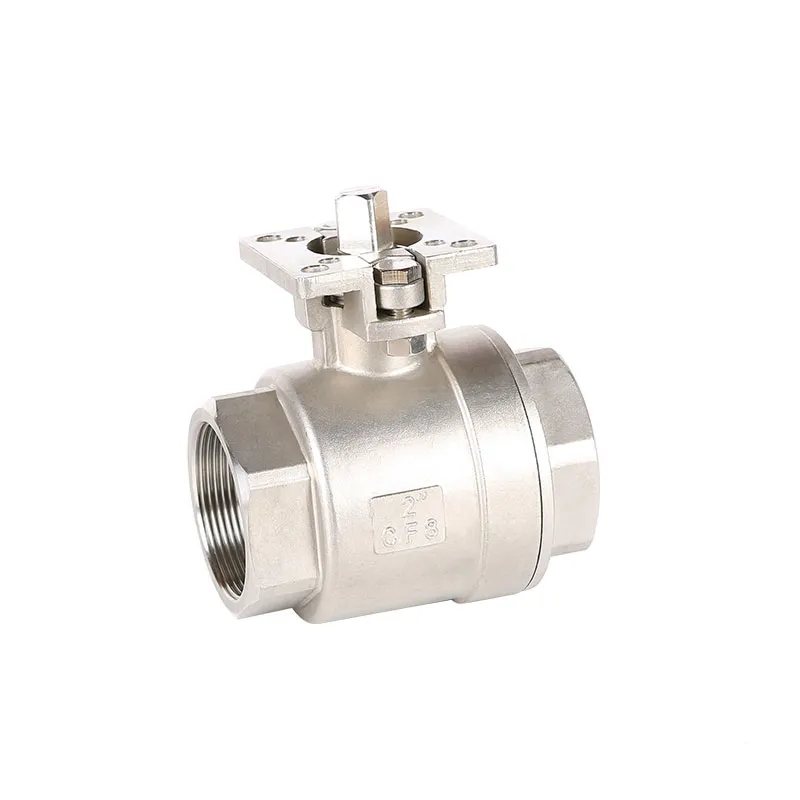

| PRODUCT SERIES： | BALL VALVE | MODEL： | Q11F-1000P |
| DESIGN AND MANUFACTURE： | ANSI B16.34 | INSPECTION AND TEST： | API 598 |
| MOUNTING PAD: | ISO 5211 | SIZE： | 1/2"--4" |
| BODY MATERIAL： | CF8 | BONNET MATERIAL： | CF8 |
| TRIM MATERIAL： | SS304 | SEAT MATERIAL： | PTFE |
| WORK PRESSURE： | 1000WOG | WROK TEMPERATURE： | -20～150℃ |
| CONNECTION： | BSP/NPT THREADED |
