*In accordance with the standard of JIS F73XX .
*Castings sourced by DNV、ABS、BBS certificated foundries.
* Applications : Marine、Ships、FPSO etc.
*Customized
You can click the QR code below or click the email button to send an email for a quote.

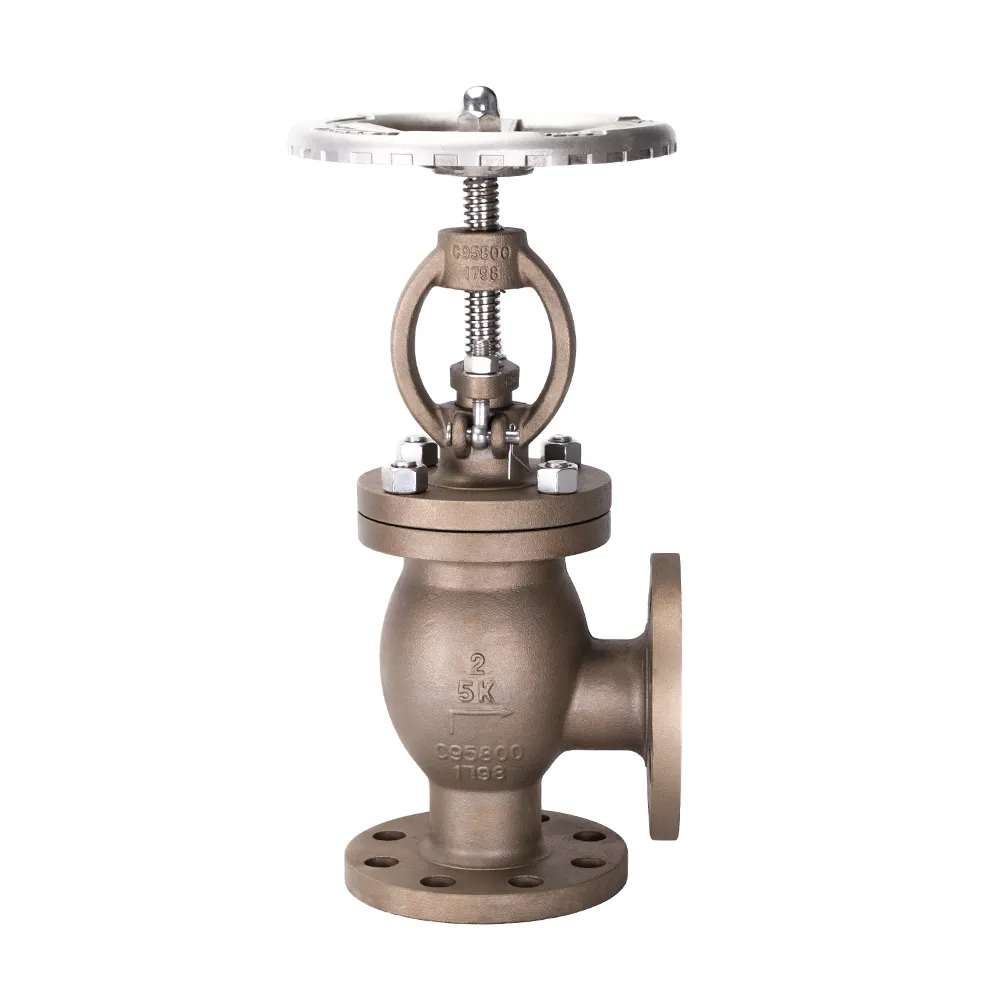

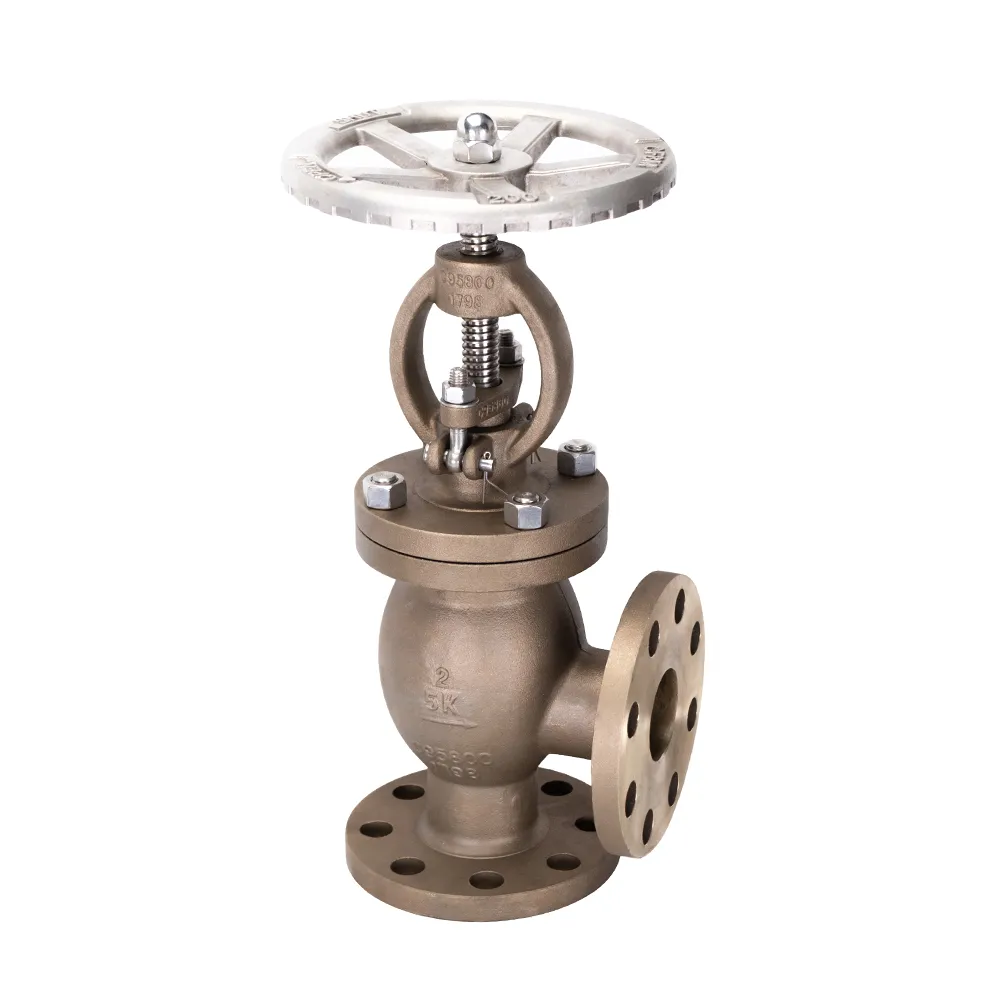

| PRODUCT SERIES： | Angle Stop SDNR Valve | MODEL： | J544W-5K |
| DESIGN AND MANUFACTURE： | JIS F 73XX SERIES | MATERIAL STANDARD： | JIS F 73XX |
| SIZE： | 1/2"~30" | BODY MATERIAL： | C95500 、C95800、C83600、C92200 、Duplex Steel etc. |
| BONNET MATERIAL： | C95500 、C95800、C83600、C92200 、Duplex Steel etc. | TRIM MATERIAL： | Monel K500 K400 etc. |
| SEAT MATERIAL： | Integral、Monel K500 K400 etc | WORK PRESSURE： | 5K 、 10K、 16K |
| TEST AND INSPECT STANDARD： | API 598 | CONNECTION： | JIS flange end |
