*In accordance with the standard of DIN3202-F1
*Nodular Cast Iron EN-GJS-400-15
*Temperature Min. -10℃
*Temperature Max.+350℃ （ instant )
You can click the QR code below or click the email button to send an email for a quote.

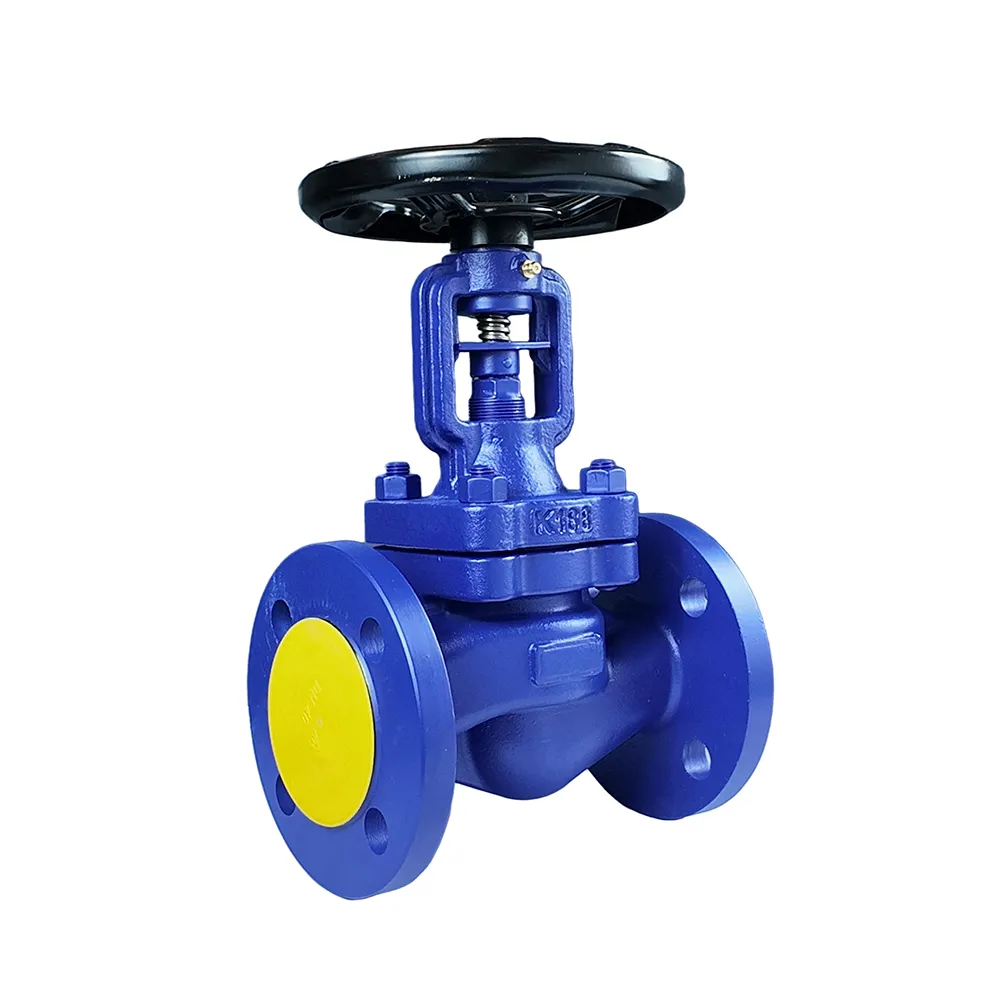

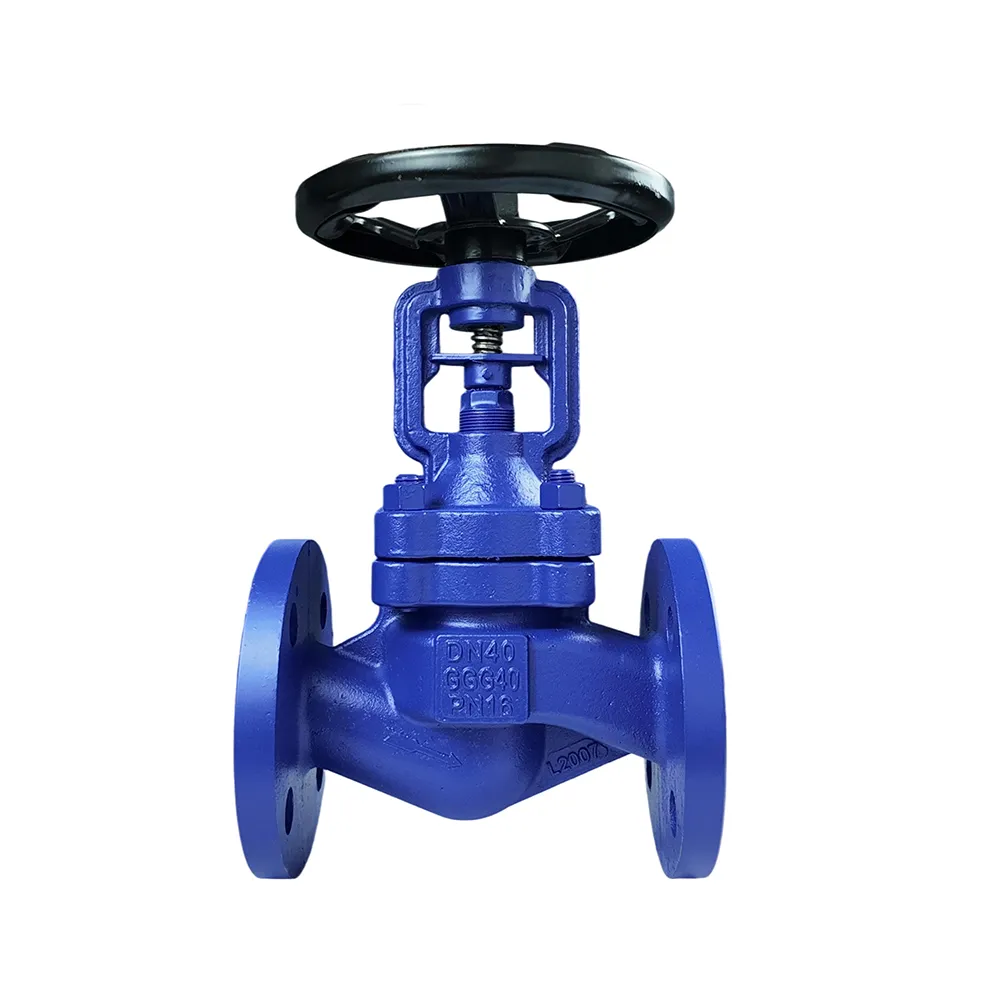

| PRODUCT SERIES： | BELLOW SEAL GLOBE VALVE | MODEL： | BGJ41H-16Q |
| DESIGN AND MANUFACTURE： | DIN3202-F1 | STANDARD： | DIN PN 16 PN25 PN40 |
| SIZE： | DN15-DN350 | BODY MATERIAL： | DUCTILE IRON GGG40 |
| STEM MATERIAL： | SS304 | SEAT MATERIAL： | Cr13 , A105 ect. |
| WORK PRESSURE： | 1.6MPA | WORK TEMPERATURE： | -20～350℃ |
| CONNECTION： | EN1092-2 | TEST STANDARD: | EN12266-1(PN16) |
