* In strict accordance with the standard of GB, JB, JIS, ANSI, KS, BS, DIN, API and etc
* Certification: ISO9001, BSCI, CE, ROHS, FCC, FDA etc
You can click the QR code below or click the email button to send an email for a quote.

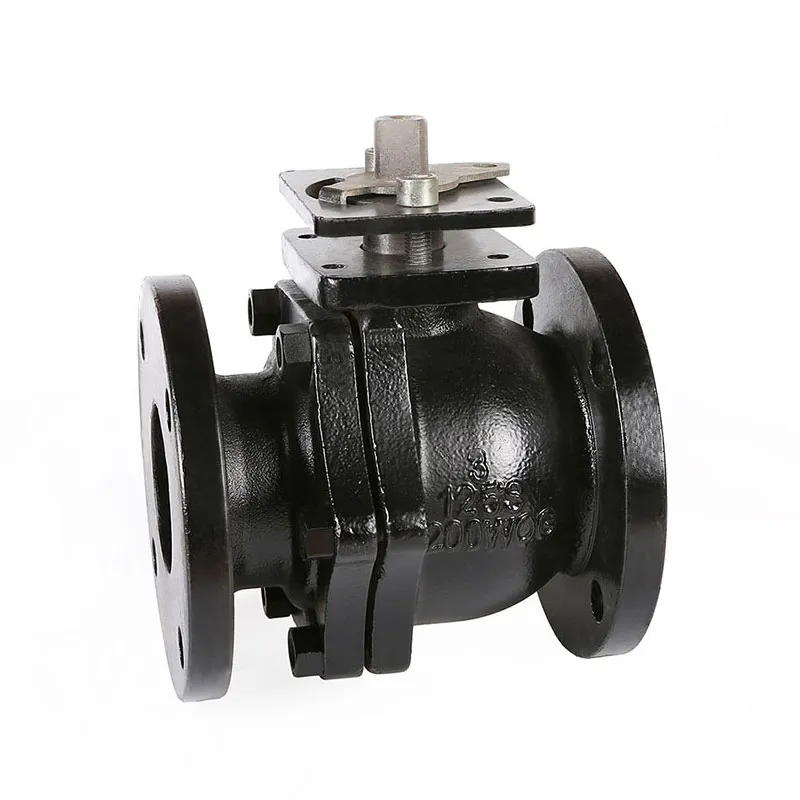

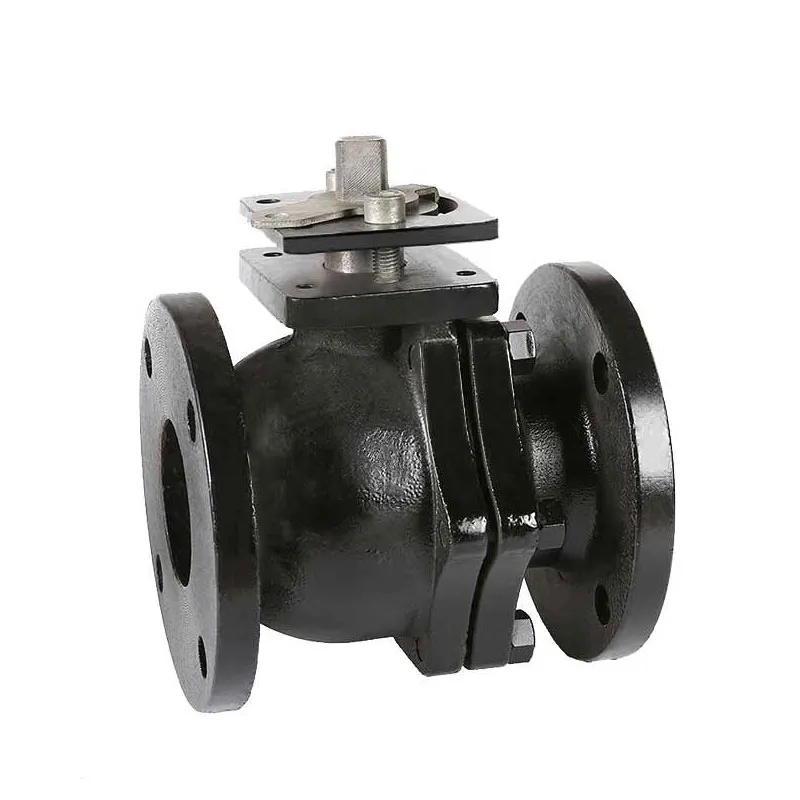

| PRODUCT SERIES： | BALL VALVE | MODEL： | MFQ41F-200 |
| DESIGN AND MANUFACTURE： | ANSI B16.34 | FACE TO FACE: | ANSI 16.10 |
| INSPECTION AND TEST: | API 598 | MOUNTING PAD: | ISO 5211 |
| SIZE： | 2"--10" | BODY MATERIAL： | CAST IRON A126-B |
| BONNET MATERIAL： | CAST IRON A126-B | TRIM MATERIAL： | STAINLESS STEEL 304、316、316L ETC |
| SEAT MATERIAL： | PTFE | WORK PRESSURE： | 200WOG |
| WROK TEMPERATURE： | -20～150℃ | CONNECTION： | FLANGED |
